BIM: LEAVING NOTHING TO CHANCE

Versatile design and construction for the CSF INOX production plant

Allplan in Practice

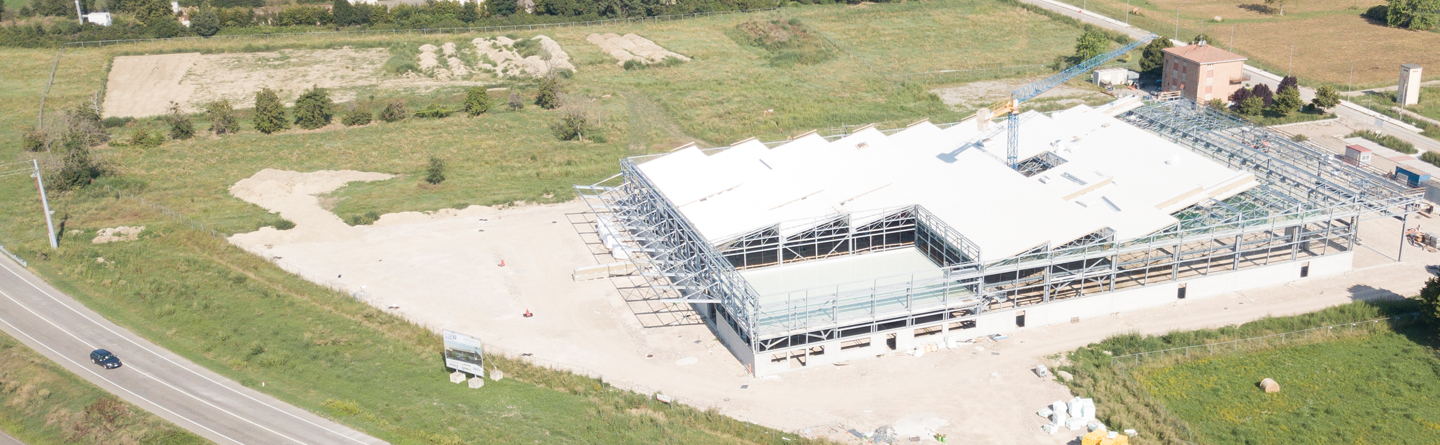

When designing the new production plant for the pump manufacturer CSF lnox in Montecchio Emilia near Parma, Italy, the engineering office INOVING had to rely on the highest possible flexibility. This project was the first stage of a larger production complex, which was to become the company‘s new management center on a site of around 50,000 square meters. Therefore, the requirements for future expansion work had to be taken into account during design and project development.

For this reason, it was decided to create a steel structure ideal for maximum versatility and better seismic performance. The construction was therefore realized with HE profile columns, main beams with a truss roof support structure or with solid profiles.

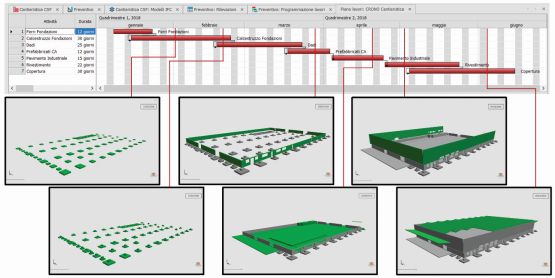

4D-Simulation von Bauabläufen
Mit freundlicher Genehmigung von CSF Inox SpA und Ingenieurbüro Inoving

PROJECT INFORMATION

> Client: CSF INOX SpA
> Project: Construction of a new production plant
> Architectural design, implementation design and site management: Engineering office INOVING
> Chronological course of the works:
Start: November 2017
End: January 2019

SOFTWARE SOLUTIONS USED:

> Allplan Architecture
> Allplan Engineering
> Allplan Bimplus
> Allplan BCM


Download this reference report as a PDF

Download exciting application examples in one package:

Case Study Package - Allplan Bimplus

Numbers, geometries and construction features

The building covers an area of around 6,700 square meters on a total area of 15,000 square meters. It has a regular geometric shape, enhanced by an ori-ginal architectural appearance, which is expressed at the top by a curtain wall that is not orthogonal to the ground floor, with a projection of about one meter from the base of the building.

The roof, with a saw tooth shape for more bright-ness, has a height of 8.50 meters under the main beams and consists of pre-painted sheet metal sandwich panels combined with high-performance insulating materials. In this way, thermal insulation and heat displacement achieve values that corres-pond to energy class A4.

50 percent of the total energy requirement of the systems was covered by a photovoltaic system with an output of approx. 250 KW, which made it possible to meet the requirements for the use of renewable energies.

The building is to house the client‘s new production area, with ancillary rooms for the warehouse, the personnel areas with changing rooms, the service areas, a medical room, break rooms and toilets, the offices, meeting and technical rooms as well as the tool store. On the south-east side there is a large open terrace on which the extraction and air-condi-tioning systems are located, whilst on the ground floor of the same part of the building there is space for compressors and forklifts.

Preparation phase of the project as a basis for its success

The preparatory phase of the project and the preliminary feasibility study played a fundamental role in analyzing and optimizing all existing variables in order to best predict, manage and optimize the various phases of the project, works and execution milestones, as well as the timetable and costs.

For this type of analysis and planning, INOVING en-gineering consultants used Allplan Engineering and Allplan Architecture software solutions, advanced solutions for structural design and the planning of the execution phase. In addition, Allplan Bimplus was used - an open cloud-based BIM platform that enabled efficient coordination of all parties involved in the construction process, thus eliminating the risk of collisions, overlaps or incompatibilities in advance.

Advantages of software solutions for efficient project managemement

The Allplan BIM software was crucial throughout the project, from the preliminary study to structural analysis, from the elaboration of the models of the final project to execution planning.

One of the main advantages for such a project was the use of the interdisciplinary cooperation platform Allplan Bimplus and the effective ability to control and manage data from very different software solutions.

This greatly simplified the interaction and exchange of specialist data between the various planners involved, thanks to the perfect compatibility of the files exchanged and the precision with which the data was imported from different sources. This made it possible to work with the greatest possible efficiency in collision control, to analyse the matches between the various design phases and to identify various problems with very high precision.

All the operations carried out on the equipment were also studied and presented in the BIM model.

Simple design and optimization of the construction site

Allplan software was also used to control the sequence of construction and earthmoving work. The small but significant differences in the height of the ground were analyzed in detail. As a result, the earth movements required to urbanize the entire 50,000 square meter site and to optimize the construction withholding tax could be evaluated right at the start of the construction phase. In this way, it was possible to reduce the quantities moved and achieve a significant reduction in construction costs.

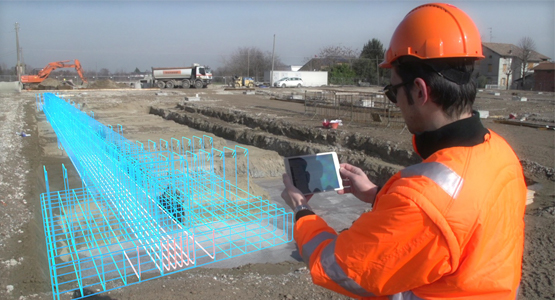

Both the detailed design of the AC foundations un-der the supervision of INOVING and the construc-tion of the metal structures (under the supervision of the contractor) were carried out using the BIM method. Thanks to Allplan, it was possible to trans-fer the external data and avoid possible collisions by positioning the metal structures, bolted to the foundations. The simulation was carried out by performing a „soft clash“ with a tolerance of 2 cm in relation to the positioning of the reinforcement cages, which solved possible collisions already du-ring the design phase and thus accelerated the exe-cution phase. The construction of the various plant, structural, architectural, cladding and manufacturing structures was also carefully designed. This made it possible to speed up and simplify the construction phases. The positioning of the production facilities already existing in the old plant, as well as the de-sign of the paths and the passage and movement areas, were already carried out in the design phase.

The entire management of the execution phase was realized with cloud tools. By using Allplan Bimplus, communication between the site manage-ment and the working group was very efficient: the contractor and client could quickly and easily access the BIM model and the technical documents.

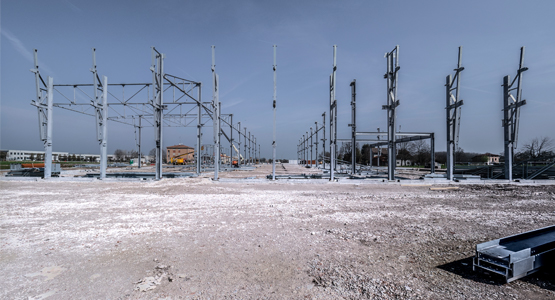

Installation von Konstruktionen in der Metall schreinerei Mit freundlicher Genehmigung von CSF Inox SpA und C&P Studio

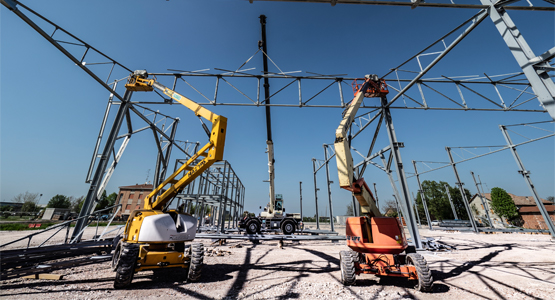

Anbringen des Dachstuhls in der Metallschreinerei

Planning of the maintenance management of the building

Allplan software not only proved to be an effective support in the entire design and execution phase of this project, but also enabled the client to set up a well-founded database geared to facility manage-ment. In fact, it was possible to easily capture all external data to extend the BIM model.

Thanks to this feature, all the technical parameters needed to manage the building and the installed production systems could be inserted and coded into the BIM model. The BIM model for mapping the „as built“ state, equipped with the database of products used du-ring the construction phase, is used and updated by the client for advanced facility management, which significantly reduces the administrative costs of the complex.

The as-built model is also used by the company as part of the ISO 14001 qualification process. It not only serves as an operational tool for accessing work files, but also records deadlines and enables compliance with environmental regulations.

Challenges:

> Coordination of various software products
> Managing the multidisciplinary aspect of the project
> Use of different software due to different project partners involved
> Need to get plant, structural and implementation projects under one roof
> Necessity to optimize time and budget plan

Achieved objectives

> Immediate resolution of conflicts
> Development of the overall design with the BIM methodology
> Functional management and integration of the various software solutions used
> Simplification of interdisciplinary cooperation through central coordination
> Collision monitoring and immediate resolution of conflicts
> Simple exchange with the client within the scope of monitoring the progress of work thanks to comprehensive visualization of the intermediate steps
> Realization of versatile structures that are com-patible with future expansion options
> Optimization of work processes on the construc-tion site

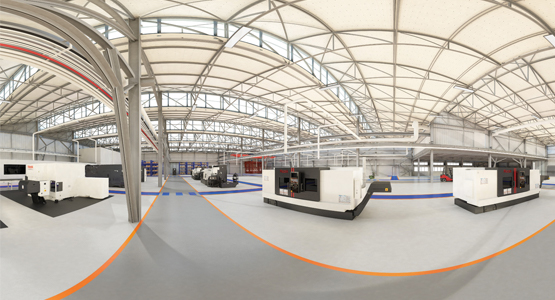

BIM-Modell des Werks mit Rundumblick, für die Navigation mit immersiver Virtual Reality
Mit freundlicher Genehmigung von CSF Inox SpA und Ingenieurbüro Inoving

Download exciting application examples in one package:

Case Study Package - Engineering

The client

INOVING is an associated engineering office specialized in services in the field of architectural, urban design, hydraulic and environmental design, tender preparation, operations management, safety and coordination. The high level of innovation that characterizes INOVING‘s expertise is reflected in our range of services, including:

> BIM Management: Complete management of BIM-based contracts
> Cloud Management: Management of cloud-based orders
> BIM Authoring: Development of BIM models
> BIM Validation: Validation of BIM models by model and code checking
> Virtual Reality: Immersive planning thanks to Virtual Reality
> 4D planning: virtualization of construction phases with 4D planning
> Quantity determination 5D: Economic analysis of orders on the basis of the BIM model
