Allplan for Infrastructure Projects

Consistency and quality
are what set you apart

Contact us for a personalized demo

Engineering firms design both structural and non-structural elements that surround highway and bridge infrastructure projects. These elements are critical components to manage traffic, storm water, driver safety, and to control noise. This type of work is competitive, and cost savings and efficiency are critical to winning bids.

Allplan can help you intelligently reuse your 2D CAD work, while leveraging a 3D model for optimal planning, clash detection, and visualization. A 3D BIM model used in the planning and design stages can streamline everything from fabrication, to scheduling and shipping.




Allplan for Infrastructure Projects

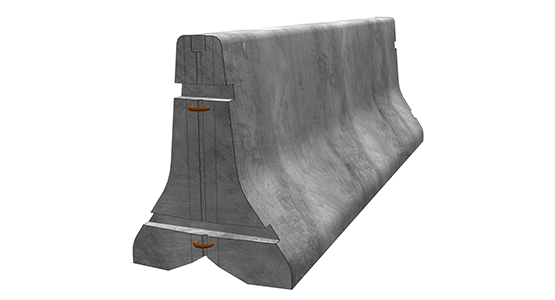

Barrier

Deliver detailed barrier designs to match DOT requirements quickly and accurately.

Jersey Barriers are a critical part of highway saftety measures, both during construction and after construction is completed. Manufactured in many sizes and configurations, they’re incredibly durable and allow for increased design flexibility.

In Allplan you can design and reinforce a barrier quickly, using familiar 2D CAD technology to get a fully reinforced 3D model. If you prefer, you can easily import a barrier from an on-line database, another software program, or a manufacturer's library.

In just a few clicks, you can convert your barrier into a 3D object with all of the weight, dimension, and rebar data available to produce drawings, reports, and schedules.



watch the video Personalized demo




Allplan for Infrastructure Projects

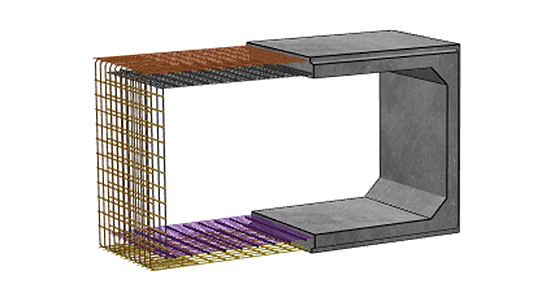

Culvert

Fully automated design and reinforcement solution for box culverts

Box culverts are commonly constructed as bridges to vehicle traffic or pedestrians, and enable building in a way that doesn’t infringe on the natural landscape. Working in 2D CAD is limiting and can leads to mistakes in caluclating reinforcement.

Allplan allows users to retain a familiar 2D workflow, while simultaneously producing a 3D model. The model allows users to visualize the culvert more easily so that reinforcement can be designed and calculated with minimal errors and clashes. Allplan can automatically generate a reinforced 3D model, ready to produce drawings and schedules, with just a few clicks.



watch the video Personalized demo




Allplan for Infrastructure Projects

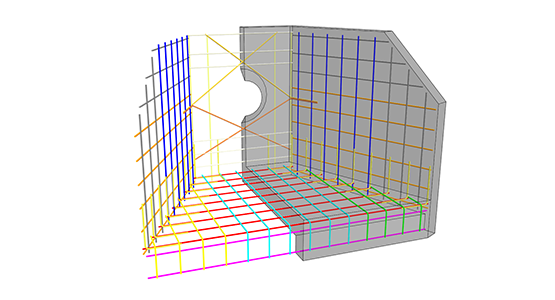

Headwall

Reach a new dimension of efficiency and precision for headwalls.

Concrete headwalls are frequently included in infrastructure projects to improve stormwater flow and to prevent flooding. They are also used to provide support for bridges and roadways by anchoring underground storm sewer piping to prevent movement and soil erosion.

Allplan's Headwall APP includes everything necessary to create your headwall providing the ability to modify the geometry to your liking, including aprons, openings, and sloped end walls. After the geometry is defined, all the required reinforcing can be added through inputs.



watch the video Personalized demo




Allplan for Infrastructure Projects

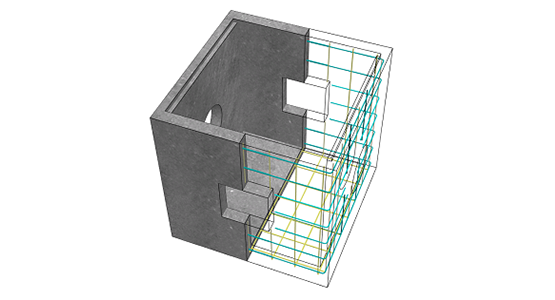

Inlet

Quality project delivery with construction-ready design.

Concrete inlets are used to collect surface runoff from roadways, parking lots and other surfaces and deliver it to underground stormwater management systems. Inlets can be produced in many configurations to meet DOT and local requirements and conditions.

Allplan's Inlet APP includes everything necessary to create your Inlet - providing the ability to modify the geometry to your needs, specify thickness, lenghth and width, and add openings and lifting inserts. After the geometry is defined, all the required reinforcing is added through inputs in the palette.



watch the video Personalized demo




Allplan for Infrastructure Projects

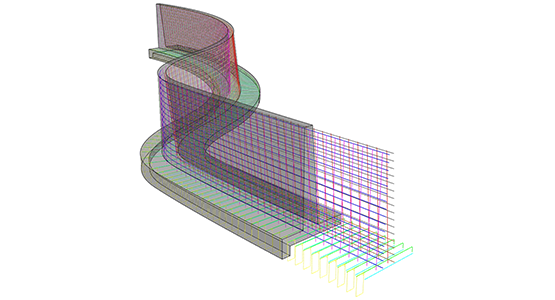

Retaining wall

Deliver better retaining walls on time and on budget.

Retaining walls used to retain soil that holds up a roadway, or in the right of way of a highway. These walls are important for safty by defending against weather, runoff, noise and accidents.

Allplan uses familiar 2d modeling to automatically generate 3d reinforcing. You can quickly reinforce anything from simple to complex shapes using our intuitive built-in tools. With only an extra click, what you had been modeling in 2d will now generate a full 3d model of the rebar making reinforcing more clear and accurate.



watch the video Personalized demo




Allplan for Infrastructure Projects

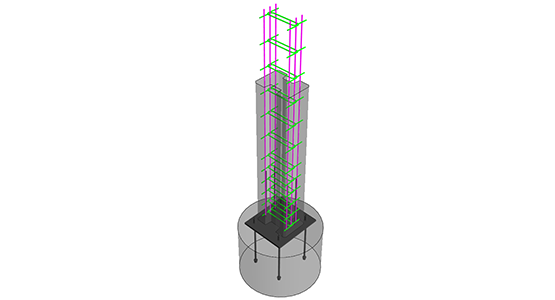

Sound wall

Fully automated design and reinforcement solution for sound wall posts.

Sound walls and noise barriers are critical component of infrastructure project located near urban and suburban areas. Concrete sound wall panels are typically secured in concrete columns that are attached with anchor bolts to an existing structure.

Allplan's Column APP completely automates the design and reinforcement of your concrete column. Use parametric controls to specify the geometry for the overall shape, including corbels. After the geometry is defined, the APP can add lifting inserts if necessary, and all the required reinforcing.



watch the video Personalized demo




Allplan for Infrastructure Projects

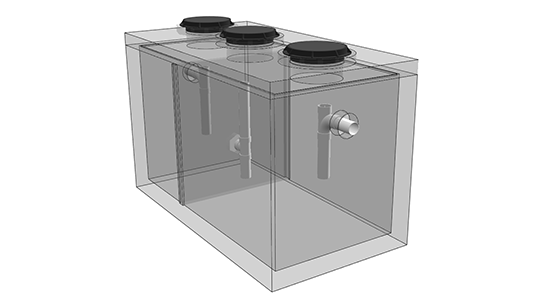

Storm water

Deliver detailed storm water management designs more quickly than ever.

Within an infrastructure project site, concrete underground stormwater systems are used for detention or retention for beneficial reuse. They are critical components for stormwater BMPs (best management practices) and must withstand the volumes of water flowing inside and extreme loading conditions on the outside.

Allplan can help you design and reinforce stormwater systems quickly, in one simple workflow. You can draft in 2D, and generate a 3D model simultaneously. Plus, with automatic clash detection and automated reporting, calculating reinforcement and bending schedules will take mere minutes.



watch the video Personalized demo




Allplan for Infrastructure Projects

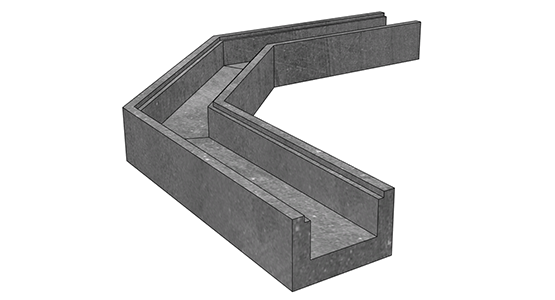

Trench

Design and reinforcement solution for trenches.

Concrete trenches are a versitile component of roadway and bridge projects, they are commonly used to channel water runoff from roadways, used in conjunction with stormwater management systems. They are also used to provide protection for underground services such as utility, steam, and phone lines.

Allplan helps to simplify the reinforcement process with automatic shop drawing creation. And if changes are made to the trench design, bar bending schedules and material take offs can be updated directly from the model with a few clicks of a button.



watch the video Personalized demo




Allplan for Infrastructure Projects

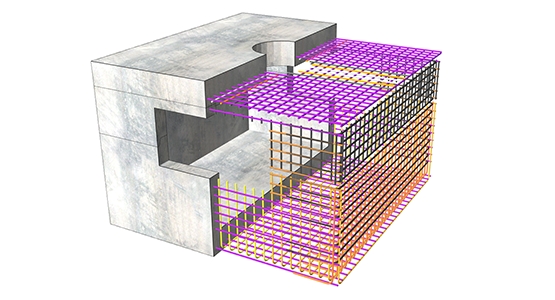

Vault

Design and detail vaults quickly in one, simple workflow.

Along with the trench and manhole, a utility vault is an important structure for roadway and bridge projects to contain the critical connections and controls for not just electrical cables, but also for gas, steam and water system controls, fiber optic and telecommunication writing.

Allplan's Vault APP automates the design and reinforcement of your vault, while parametric controls allow you to specify the geometry and openings. After the geometry is defined, all the required reinforcing is added through inputs in the palette. Changes are easy to manage, and reinforcement is automatically recalculated, and all data is available for reports, shop drawings and schedules.



watch the video Personalized demo
